DAB PUMPS

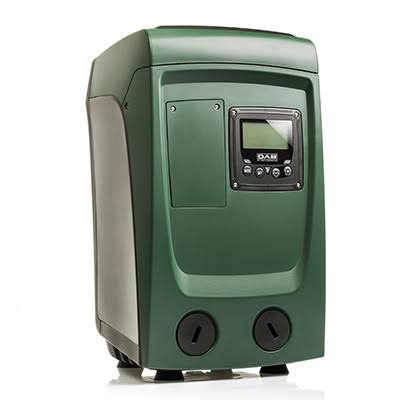

The ESYBOX MINI 3 is a compact automatic pressurization system designed by DAB for supplying water to a single residence. It ensures a steady water pressure inside the house, and it can be adjusted to your desired pressure between 15 and 80 pounds per square inch (psi).

This system uses advanced VFD technology that helps save energy. You can use it with drinking water and all your household needs, it can even be used for gardening.

The best part is that you don’t need any extra parts to install it. It includes a powerful pump, smart electronics, pressure and flow sensors, a clear LCD display, a built-in expansion tank, and a check valve. You can install it vertically or horizontally and its compact size makes it suitable for tight spaces where air circulation may be limited.

In summary, the ESYBOX MINI 3 offers a convenient and efficient solution for maintaining water pressure in a single residence. It ensures comfort, energy savings, while still being easy to install.

Operating range capacity up to 21.1 GPM; head up to 180 ft

Liquid quality requirements clean, free from solid or abrasive contaminants, non-viscous, non-aggressive, uncrystallised and chemically neutral.

Liquid temperature range  from 32°F to +104°F

Maximum suction depth 26 ft

Maximum ambient temperature +122°F

Maximum operating pressure 109 psi

Insulation class F

Installation horizontal or vertical fixed position

Special versions on request alternative types of electrical plug

Certification Approved to NSF61, 372, UL and CSA standards

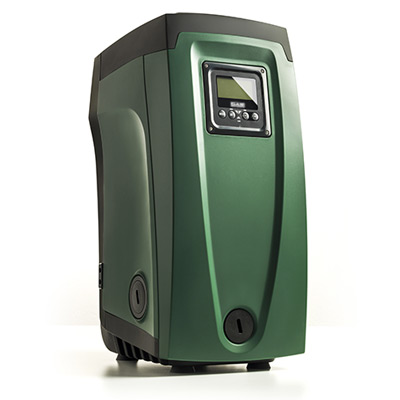

ESYBOX is a comprehensive pressurization system developed by DAB for use in homes and residential settings. The great thing about ESYBOX is that it doesn’t require any additional components during installation. It combines several key components, including a multistage self-priming pump with electronic inverter control, flow and pressure sensors, a high-resolution LCD display, and an integrated 0.5-gallon expansion tank.

One of the advantages of ESYBOX is its flexibility in installation. It can be mounted both vertically or horizontally, making it suitable for various spaces, even those with limited air circulation.

The system features a water-cooled motor, protective, sound absorbing ABS hull protection, vibration damping feet, and advanced electronics. These advansed features contribute to its quiet operation, producing only 43 decibels of noise. Additionally, ESYBOX offers wireless capabilities, enabling easy creation of multi-pump pressurization units and seamless connectivity with other DAB devices.

In summary, ESYBOX is a reliable and compact pressurization system designed for domestic and residential applications. It simplifies installation by eliminating the need for additional components and offers various features for optimal performance, including quiet operation and wireless connectivity options.

Operating range capacity up to 31.7 GPM; head up to 213 ft

Pumped liquid clean, free from solids or abrasive, nonaggressive, non-viscous, crystallized and not chemically neutral.

Maximum liquid temperature 104°F

Maximum ambient temperature 122°F

Maximum suction depth self priming up to 26 ft

Maximum working pressure 116 psi

Degree of protection IP X 4

Insulation class F

Certification Approved to NSF61, 372, UL and CSA standards

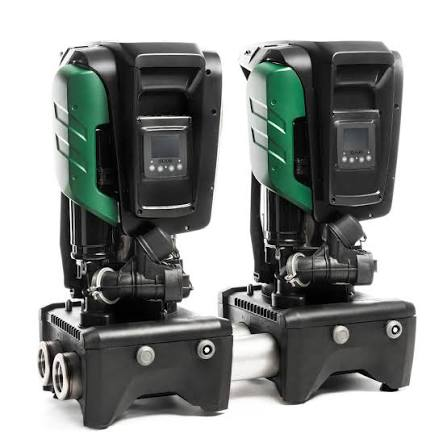

The ESYBOX Max is an all-in-one pumping system designed for water pressurization in commercial buildings. It comes in two different power sizes, and you can customize the configuration based on your needs. Whether you need a single, double, triple, or quadruple unit, this system can handle it. It’s perfect for medium to large condominiums and even tall buildings with uo to 14 floors.

Each unit uses the ESYDOCK Max docking station to connect the pumping unit to the pipeing system.

The pumping unit itself contains an electronic vertical pump with multiple impellers, a display, a Wi-Fi module, pressure sensors, a non-return valve on the delivery side, and an integrated expansion tank. What’s really cool is that you can assemble the unit right at the installation site, thanks to the innovative docking station and wireless communication between the pumps. One person can handle the assembly easily.

The system uses a variable frequency drive, which adjusts the motor’s speed to maintain a constant pressure. Plus, it has a water-cooled permanent magnet motor, which means it’s more efficient and can save energy. The large display makes it easy to configure the system’s settings, and you can even view them from your smartphone using the DConnect app or access them remotely through the DConnect service.

If you need to interface the Esybox max with a BMS (Building Management System), there’s an expansion module available called esy I/O that you can use as an accessory.

Flow rate up to 76.6 GPM (single pump unit)

Head 371 ft

Type of pumped liquid clean, free from solid or abrasive substances, non-viscous, non-aggressive, non-crystallized and chemically neutral

Maximum liquid temperature +104°F (40°C)

Maximum room temperature  +113°F (45°C)

Maximum inlet pressure 73 psi

Nominal pressure (PN) 174 psi

Constant pressure range 15-174 psi (44 psi by default)

Motor protection class IP X5

Motor insulation class F

Impeller material technopolymer

Single phase power input 208-240 V 50/60 Hz

Three phase power input 380-480 V 50/60 Hz

Type of installation fixed in vertical position

Certification Approved to NSF61, 372, UL and CSA standards
